ELP SERIES

ELP – Series Reverse Osmosis Systems are engineered in response to the need within the light commercial market for a system without a pump. The ELP – Series systems provide a cost–effective solution for customers and are easy to install and maintain. These systems are designed to be wall mounted, and feature a 5 – Micron Sediment and 10 – Micron Carbon Pre–Filters, Slim Line Cartridge Housings, 500 GPD membrane and membrane housing.

ELP – Series Reverse Osmosis Systems are available in models ranging from 350 to 700 gallons per day (GPD), at a line pressure of 70 psi (ELP – 350 and ELP – 700). The ELP – 500 model is also available with a pump to deliver 500 GPD.

Features

  • Cover with Glycerin–Filled Pressure Gauges Including:
    Post–Filter Pressure Gauge
    Operational Pressure Gauge
    Permeate Pressure Gauge
    DM 2 Dual TDS Meter
  • TF – 3012 – 350 Membrane Element
  • 3012 Membrane Housing
  • 2.5” x 20” 5 – Micron Sediment Pre–Filter
  • 2.5” x 20” 10 – Micron Carbon Block Pre–Filter and Post–Filter
  • 20” Slim Line Cartridge Housings
  • Automatic Shut Off Valve
  • Push/Pull Fittings with Locking Safety Clip

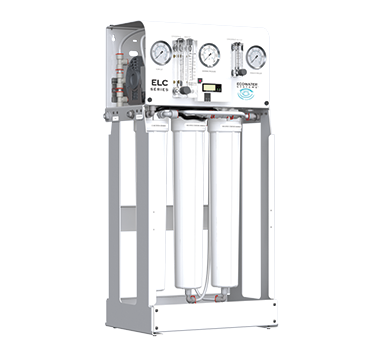

ELC SERIES

ELC – Series Reverse Osmosis Systems are manufactured for light commercial applications and feature a compact space–saving design. The versatile design allows for either wall–mounted or freestanding operation. The ELC – Series Systems come preassembled and ready for immediate online service with minimal set up and simple utility connections.

ELC – Series Reverse Osmosis Systems have been engineered for capacities of 750 or 1,500 gallons per day and feature a Low Lead Brass Rotary Vane Pump designed for enhanced performance.

Features

  • White Powder Coated Steel Bracket
  • 2.5” x 20” 5 – Micron Sediment Pre–Filter
  • 2.5” x 20” 10 – Micron Carbon Block Pre–Filter (on ELC – 750)
  • 20” Slim Line Cartridge Housings
  • Low Lead Brass Rotary Vane High Pressure Pump
  • ODP High Efficiency Carbonator Motor
  • HF5 – Series Ultra Low Energy Membrane Elements
  • Permeate Flow Meter
  • Concentrate Flow Meter with SS Integrated Needle Valve
  • Concentrate Recycle Flow Meter with SS Integrated Needle Valve
  • Feed Solenoid Valve
  • 0 – 300 psi Pump Pressure Gauge
  • 0 – 100 psi Post–Filter Pressure Gauge
  • 0 – 100 psi Permeate Pressure Gauge
  • Push/Pull Fittings with Locking Safety Clips
  • Low Pressure Switch for Pump Protection
  • Permeate High Pressure Switch
  • DM – 2 Dual TDS Meter
  • 20” Floor Stand

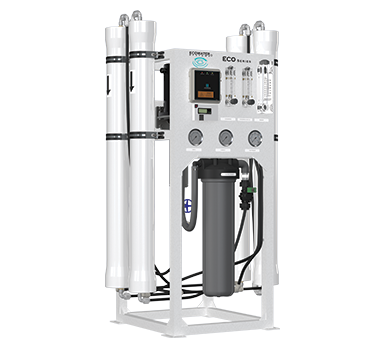

ECO SERIES

ECO – Series Reverse Osmosis Systems are state–of–the–art, versatile systems for treating tap and well water supplies with flow rates ranging from 2,000 to 8,000 gallons per day with minimal energy consumption and low maintenance and operation costs.

ECO – Series Reverse Osmosis Systems feature a robust, innovative design that allows for versatility in the event of feed water quality and temperature variations. Standard features include a composite solenoid valve, low pressure switch, and a stainless steel booster pump for high performance and corrosion resistance.

Features

  • C – 26 Controller
  • Ultra Low Energy Membrane Elements
  • Fiberglass Membrane Housings
  • 4.5” x 20” Pre–Filter Housing
  • 5 – Micron Sediment Filter
  • Multi–Stage Stainless Steel Centrifugal Pump
  • Motor Thermal Overload Protection
  • Pump Operating Pressure Gauge
  • Pre–Filter In Pressure Gauge
  • Pre–Filter Out Pressure Gauge
  • Permeate Flow Meter
  • Stainless Steel Concentrate Flow Meter with Integrated Needle Valve
  • Stainless Steel Recycle Flow Meter with Integrated Needle Valve
  • Feed Low Pressure Switch
  • Composite Solenoid Valve
  • DM-2 Dual TDS Meter
